Epson PP-50II

Automated Disc Publishing

Combining precision robots with the world’s leading inkjet printing technologies, Epson is setting a new standard for professional disc publishing, printing up to 3 Blu-Ray discs per hour*

Publishing speed up to 15 discs / hour1
Printing up to 60 discs / hour2

High Precision and Reliability
The Discproducer PP-50II is built to withstand hard knocks and keep dust out. The solid body provides a sturdy housing for the intricate technologies within to run processes smoothly without any interruption.

With AcuGrip™ robotic arm, which handles one disc at a time, reduces the risk of incurring scratches on the disc, often caused by conventional sliding mechanisms and prevents interruptions during unsupervised production, caused by mechanical blockage.

Unrivalled Performance with Cost Savings
Epson’s industry-leading Micro Piezo print head and ink technology ensure uniform, stable ink droplets with virtually no satellites or misting, producing brilliant and crisp disc labels at a high resolution of up to 1440 dpi x 720 dpi.

Epson’s Micro Piezo™ technology also protects against striation and ink bleed, and allows ultra-fine colour graduation plus razor-sharp text – even in small font sizes.

Instead of traditional whole cartridges, Discproducer utilises six individual highcapacity ink cartridges that are easily replaced in a few seconds, thus allowing you to print more while keeping running costs low.

Convenient and Fuss-Free Operation
The "Total Disc Maker" software is easy to use for fast and efficient production of CDs and DVDs in just three simple steps:

Step 1: Compile Data. Disc Editing mode lets you indicate the type of data to be burned – for example a music, video or data disc – then load the data and save it into a created folder. It’s quick and easy, so even nonexperts and novices will find it a breeze.

Step 2: Compose the Print Image. Label Editing mode lets you compose your CD/DVD label using pre-defined templates and provided images or even customize your own design. Preview your finished composition and store it for easy retrieval in the future.

Step 3: Configure for Production. Publishing mode lets you set parameters such as the number of CDs or DVDs to be burned, the burning and print speed, the in/out trays for discs, and print resolution. Then simply press “Publish” and your production run is on its way.

Monitoring System Reliability
The Monitoring Software keeps you informed about all-important parameters such as tray status and pending jobs. It helps you choose whether to let your production run continue unattended, and protects you against unexpected interruptions, especially when facing tight deadlines.

Compact Design
At less than 40cm wide, the PP-50II is one of the smallest systems in its class. Its flat top allows for another unit to be stacked above to save space or be used as storage surface for media and print cartridges.

Convenient Total Front-Operation

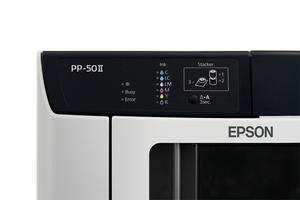

The PP-50II comes with the exclusive feature of a two-line LCD display which is a built-in status monitor to display ink levels, helping to alert you and reduce production errors.

Blu-Ray Supported for PP-50II
The PP-50II is Blu-ray, DVD and CD publisher, combining proven features with design enhancements. Capable to produce precise and reliable results, it can burn and print up to 3 Blu-Ray discs per hour.

Versatile Operating Modes
Choose from two operating modes to suit your production:

Standard Mode - for larger runs of up to 50 discs
External Mode - for smaller runs of up to 20 discs

Ideal for a Wide Range of Applications
The fully automated PP-50II is designed to deliver highly reliable data burning and photo-realistic printing for all kinds of applications, leaving you free to focus on other tasks.

อะไรอยู่ในกล่อง:

CD-ROM (Printer Driver, Application Software, User’s Guide)

Paper Manual (Setup Guide)

6 Ink Cartridges (Cyan, Magenta, Yellow, Light Cyan, Light Magenta, Black)

AC Cable

Warranty card

Publishing Speed:


CD (Burn and print): Up to 15 discs / hourDVD (Burn and print): Up to 8 discs / hourBD (Burn and Print): Up to 3 discs / hourPrinting Only (CD / DVD / BD): Fast Mode: Up to 60 discs / hour
Fine Mode: Up to 40 discs / hour

Publishing Modes (Unattended):


Low Volume Mode: Up to 20 CDs / DVDs / BDsStandard Mode: Up to 50 CDs / DVDs / BDs

Printer Module:


Print Resolution: Fast Mode: 1440 dpi x 720 dpi
Fine Mode: 1440 dpi x 1440 dpi

Ink System:


Ink Type: Dye InkInk Cartridge: Cyan, Light Cyan, Light Magenta, Magenta, Yellow, BlackYield: 1,000 discs or moreInk Pad Life: Approx. 30,000 discs

CD/DVD Drives:


Number of Drives: 1Writing Speed (Max.): CD-R / CD+R: 40x, DVD-R / DVD+R: 12x, DVD-R DL/
DVD+R DL: 8x, BD-R / BD-R DL: 8xSize: Outside diameter: 120 mm ± 0.3 mm
Inside diameter: 15 mm + 0.1/- 0 mm
Thickness: 1.2 mm + 0.3/- 0.1 mmFormat: Only standard 120mm (4.7") discsType: CD-R, DVD-R, DVD+R, DVD-R DL, DVD+R DL, BD-R, BD-R DL (BD archive disc not supported)Surface: Inkjet Printable (for glossy discs, only Epson recommended are supported)

Interface:


Standard: USB 2.0 Hi-Speed

Software:


Standard: Total Disc Maker

Computer Requirements:


Operating System: Windows 7 (SP1 or later), 8, 8 Pro, 8.1, 8.1 Pro, 10, XP (32 bit, SP3 or later), Server 2019, 2016, 2012/2012 R2 (64 bit), Server 2008 (32 bit/64 bit, SP2 or later), Server 2008, R2 (64 bit, SP1 or later)CPU: Pentium 4 or compatible processor, 1.4 GHz or faster processor (2.0 Ghz or faster processor for server) Memory: 2GB or more (Windows 64-bit or Windows server), 1GB or more (Windows 32-bit), 512MB or more (Windows XP 32-bit)HDD Capacity: 170GB or more (Windows server 2012, 2012 R2, 2016, 2019), 50GB or more (Windows server 2008, 2008 R2), 30GB or more (Windows 64-bit), 26GB or more (Windows 32-bit), 10GB or more (Windows XP 32-bit)Graphics: XGA or better, 65,536 colours or better

Warranty:


Standard: 1-year limited warranty (on-site)

Electrical Specifications:


Rated Frequency: AC 100V to AC 240VFrequency: 50Hz to 60HElectric Power Consumption: Operating: Approx. 40W
Standby: Approx. 28W

Consumables:


Black Ink Cartridge: C13S020452 PJIC6 (K)Cyan Ink Cartridge: C13S020447 PJIC1 (C)Light Cyan Ink Cartridge: C13S020448 PJIC2 (LC)Magenta Ink Cartridge: C13S020450 PJIC4 (M)Yellow Ink Cartridge: C13S020451 PJIC5 (Y)Light Magenta Ink Cartridge: C13S020449 PJIC3 (LM)Maintenance Box: C13S020476 PJMB100

หมายเหตุ:

*Blu-Ray DiscTM is a trademark owned by Blu-Ray Disc Association (BDA) and licensed for use on discs, players and other products that use BDA's optical disc format for high definition audio-video and high capacity data software applications. Blue-Ray DiscTM, Blue-RayTM, and the logos are trademarks of the Blu-Ray Disc Association.

1 Fast mode, writing speed: Up to 40x, CD: 600MB data volume

2 Printing only (CD/DVD/BD) in Fast Mode
