Epson SureColor G6030 35-Inch DTFilm Printer (available in 1H of 2025)

Printing:

---

Printing Technology: PrecisionCore Inkjet technology
Variable-Sized Droplet TechnologyNozzle Configuration: The number of nozzles: 3,200 nozzles
400 nozzles x 2 row x 4 chipsMaximum Printable Area: 894 mmMargin (Roll Paper): 3 mm (Right/Left), 5 mm (top), 5 mm (Bottom)Maximum Resolution: 1200 x 600 dpiMaximum Print Speed: *Perform a test print using the following parameters:
2 Layer, CMYK + White:
Lv.1 (300 x 600dpi): 17.0 m²/h
Lv.2 (600 x 600dpi): 8.2 m²/h
Lv.3 (600 x 600dpi): 5.6 m²/h (Default Print Mode)
Lv.4 (1200 x 600dpi): 4.2 m²/h
Lv.5 (1200 x 600dpi): 3.4 m²/h
Lv.6 (1200 x 600dpi): 2.7 m²/h
Lv.7 (1200 x 600dpi): 1.9 m²/h


1 Layer, CMYK:
Lv.1 (300 x 600dpi): 32.6 m²/h
Lv.2 (600 x 600dpi): 16.0 m²/h
Lv.3 (600 x 600dpi): 11.5 m²/h (Default Print Mode)
Lv.4 (1200 x 600dpi): 8.4 m²/h
Lv.5 (1200 x 600dpi): 6.9 m²/h
Lv.6 (1200 x 600dpi): 5.7 m²/h
Lv.7 (1200 x 600dpi): 4.3 m²/h


1 Layer, White:
Lv.1 (300 x 600dpi): 32.6 m²/h
Lv.2 (600 x 600dpi): 16.0 m²/h
Lv.3 (600 x 600dpi): 11.5 m²/h (Default Print Mode)
Lv.4 (1200 x 600dpi): 8.4 m²/h
Lv.5 (1200 x 600dpi): 6.9 m²/h
Lv.6 (1200 x 600dpi): 5.7 m²/h
Lv.7 (1200 x 600dpi): 4.3 m²/h
Image Size: 1872mm (W) × 2340mm (H) × 5 pieces, with no margins between images and a 7mm × 2 margin on the left and right for media holding.
RIP Software: Epson Edge Print Pro
Take-Up Reel: Enabled
Interface: USB 3.0Printhead: PrecisionCore MicroTFP printhead

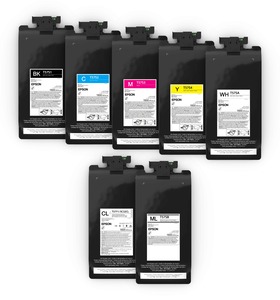

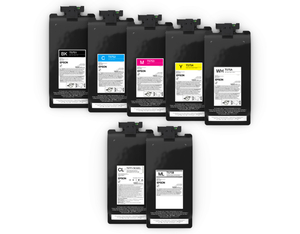

Ink:

---

Ink Type: Pigment inkColours: Cyan, Magenta, Yellow, Black, WhiteInk Capacity: 1,600mlInk Brand Name: UltraChrome DF InkInk Case: Ink Supply Unit

Roll Media Handling:

---

Media Width: 254mm to 900 mmMedia Thickness: Up to 0.5 mm
